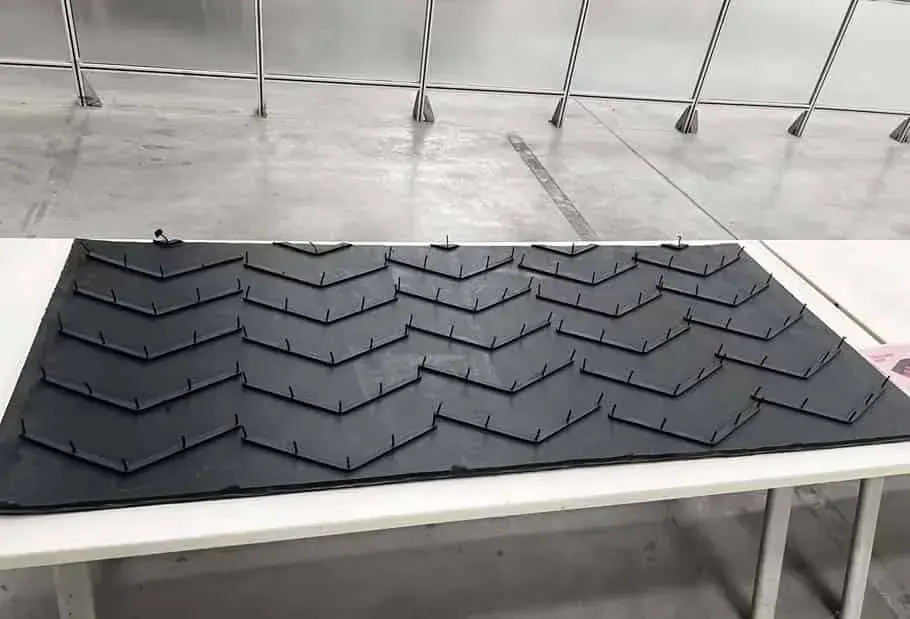

Chevron Conveyor Belt | Non-Slip Pattern Belt for Incline Conveying

The chevron conveyor belt features a "base belt + integrated chevron" structure, designed for anti-slip incline transport:

Multi-ply fabric carcass (EP/NN/CC) with core rubber, ensuring tensile strength and flexibility; cover rubber on the bottom resists roller abrasion.

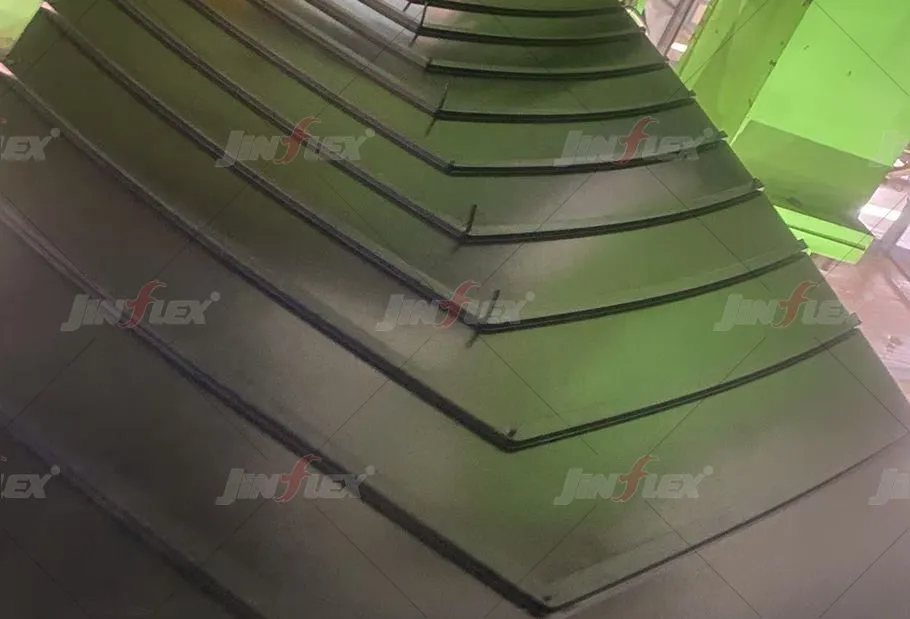

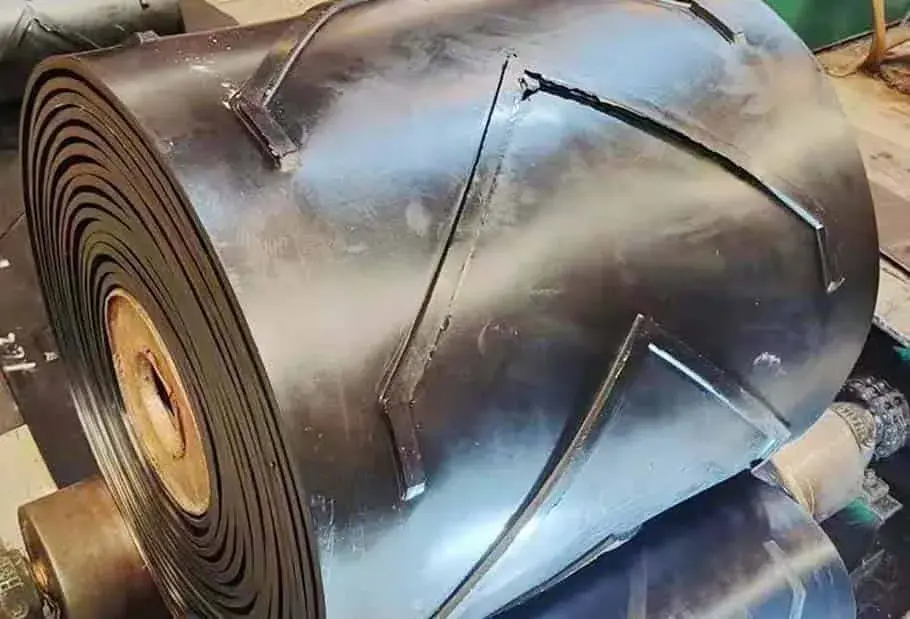

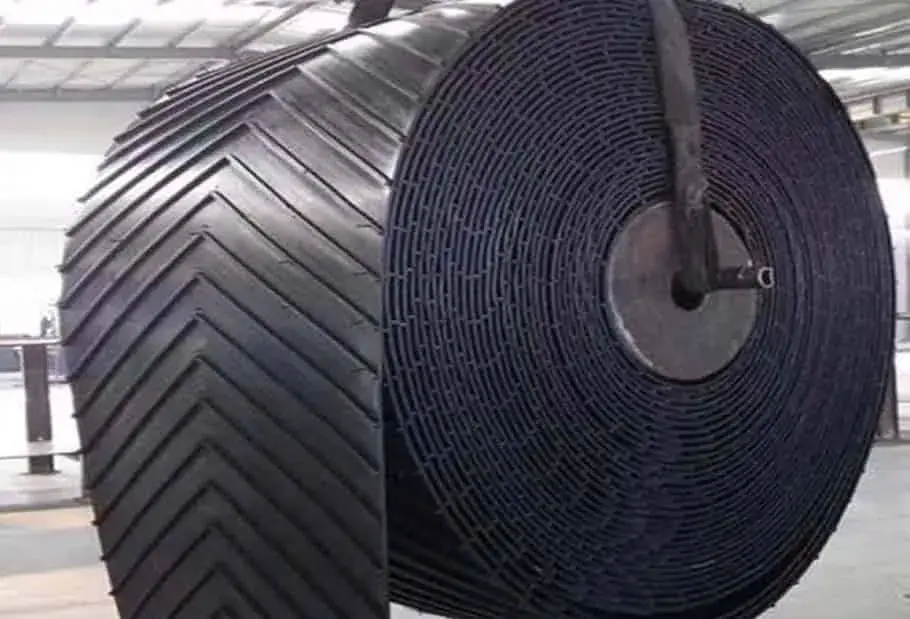

Chevron patterns (open V, closed V, L/H/Y/A/F type) vulcanized with the top cover rubber in one step—no secondary bonding, avoiding pattern detachment.

Reinforced edge rubber prevents belt edge wear and cracking during operation.

Features and Benefits

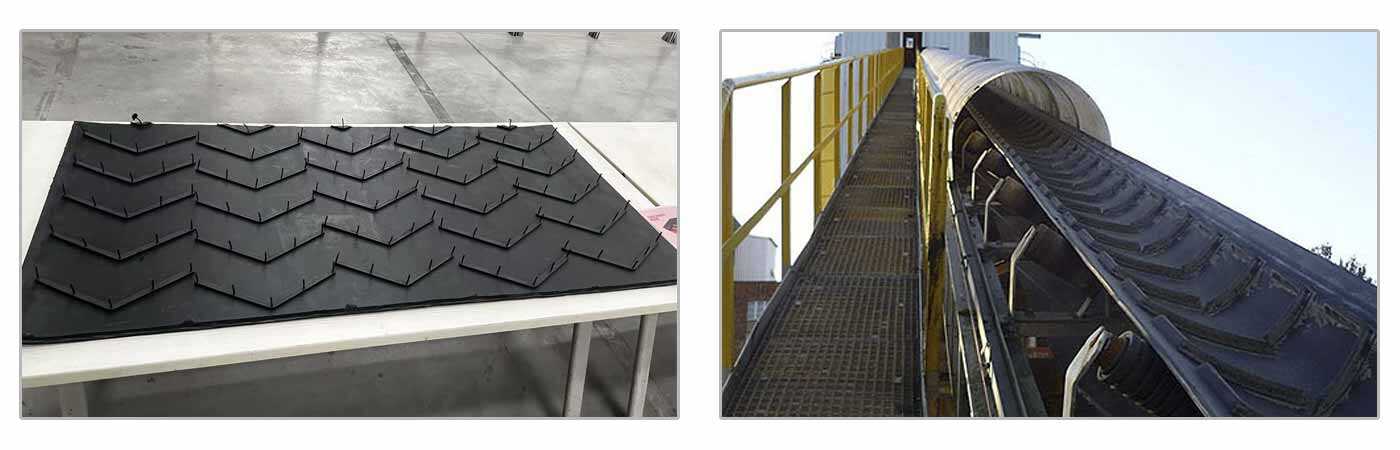

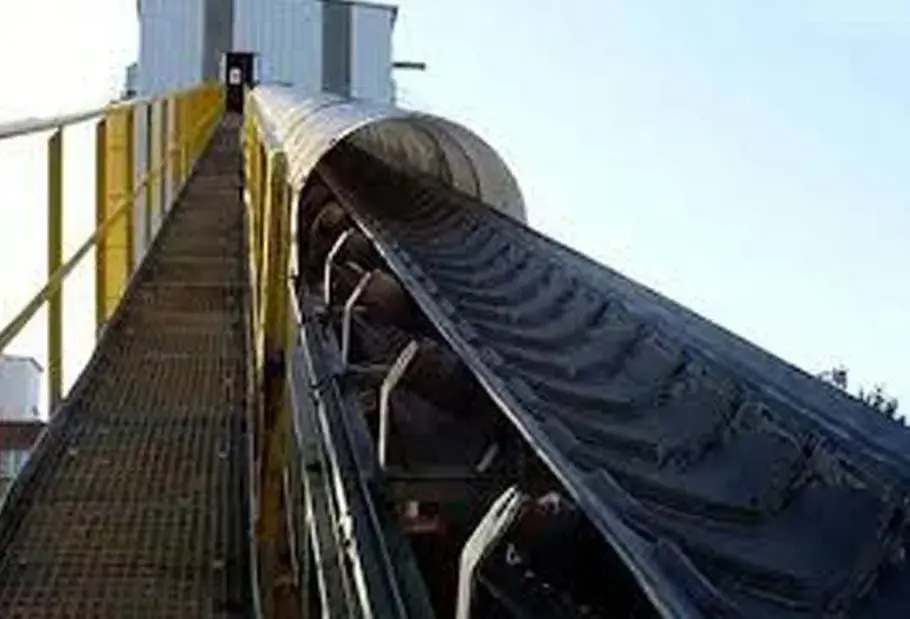

Suitable for 17-18° incline transport of bulk materials (e.g., coal, sand) and 30-50° incline transport of bagged materials (e.g., fertilizers, cement), with 95%+ material retention rate.

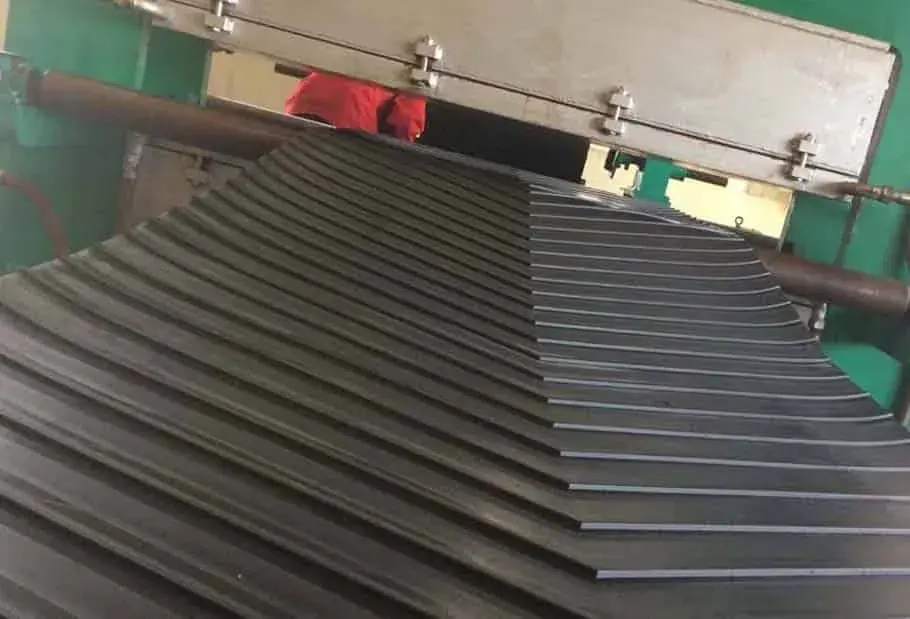

Chevron patterns and base belt are vulcanized in one step, with strong bonding; special wear-resistant cover rubber (Shore abrasion ≤120mm³) extends service life to 24+ months.

Optimized chevron angle and pitch design reduce friction between the belt and return idlers, ensuring stable operation without material residue accumulation.

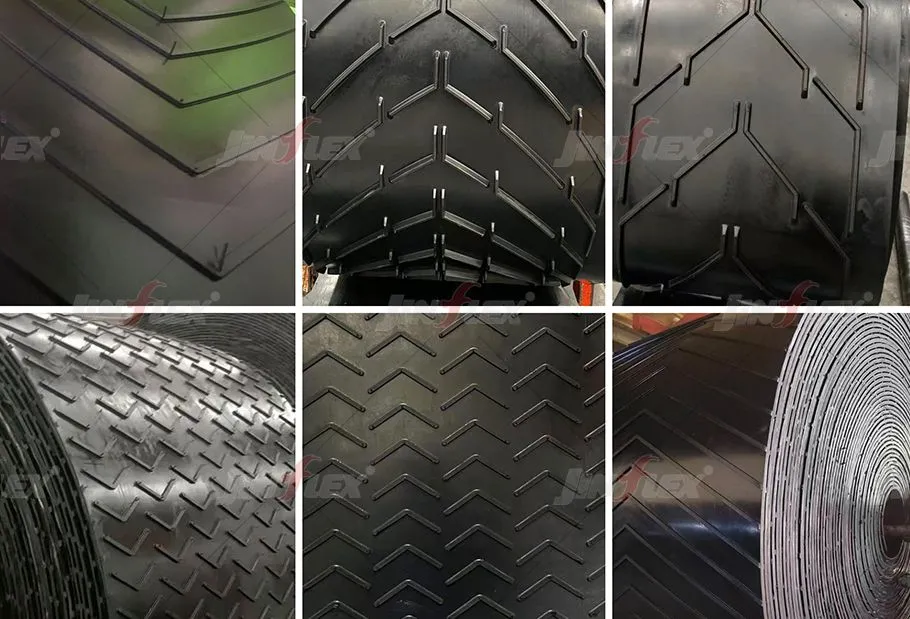

Offers open V, closed V, L, H, Y, A, F type patterns; custom patterns can be developed according to material characteristics (e.g., wet/loose materials).

Compatible with small-diameter conveyor rollers (minimum 150mm), suitable for mobile conveying equipment (e.g., mobile crushers).

Carcasses: Polyester/Polyimide (EP), Nylon/Nylon (NN), Cotton/Cotton (CC)

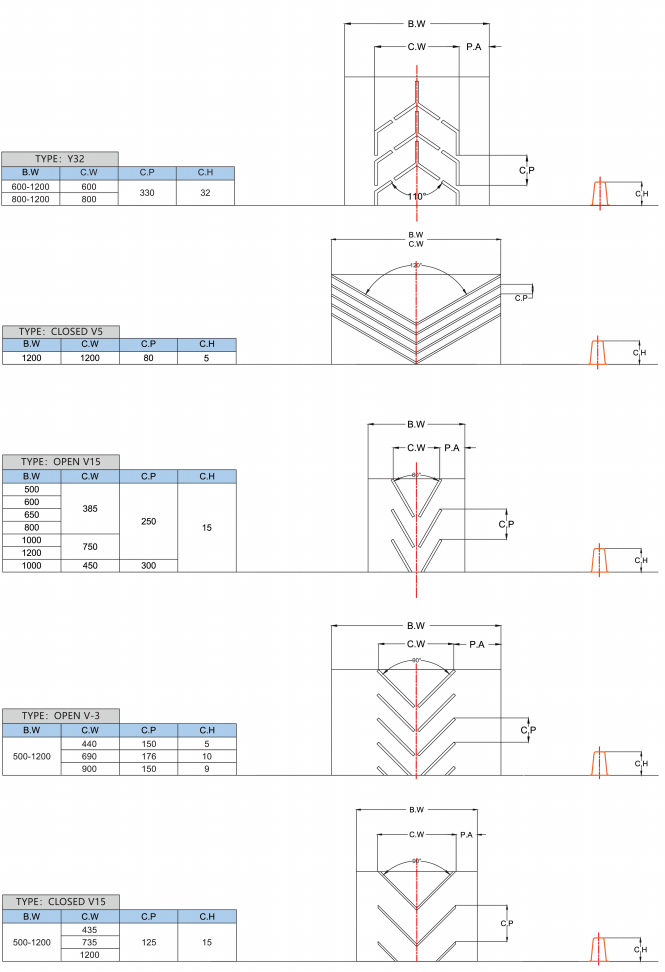

Chevron Type: Open V, Closed V, L, H, Y, A, F type (customizable)

Belt Strength: From 56N/mm (CC56) to 400N/mm (EP/NN 400)

Belt Width: 400mm - 2200mm

Special Options: Flame-resistant (MT668), oil-resistant (HG/T3714), cold-resistant (≤-45℃)

backed by 20M meters annual capacity, we deliver small batches on time.

Support independent customization according to your needs (e.g., chevron type, belt strength, cover rubber performance).
