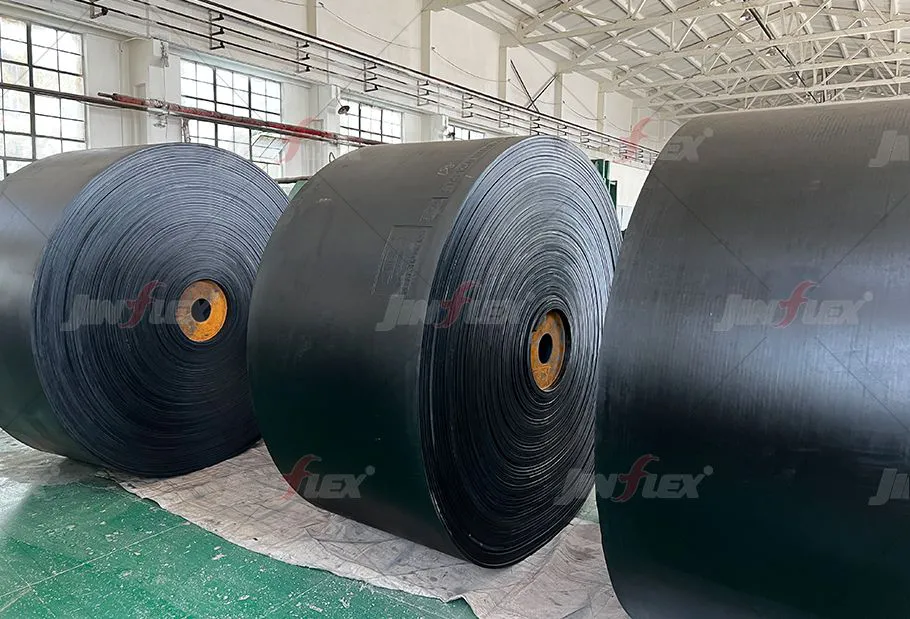

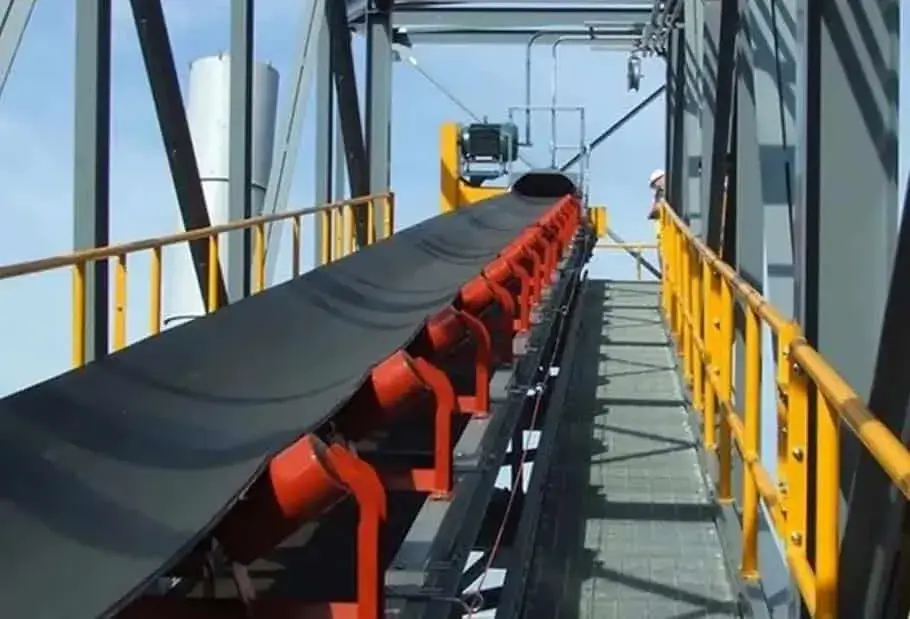

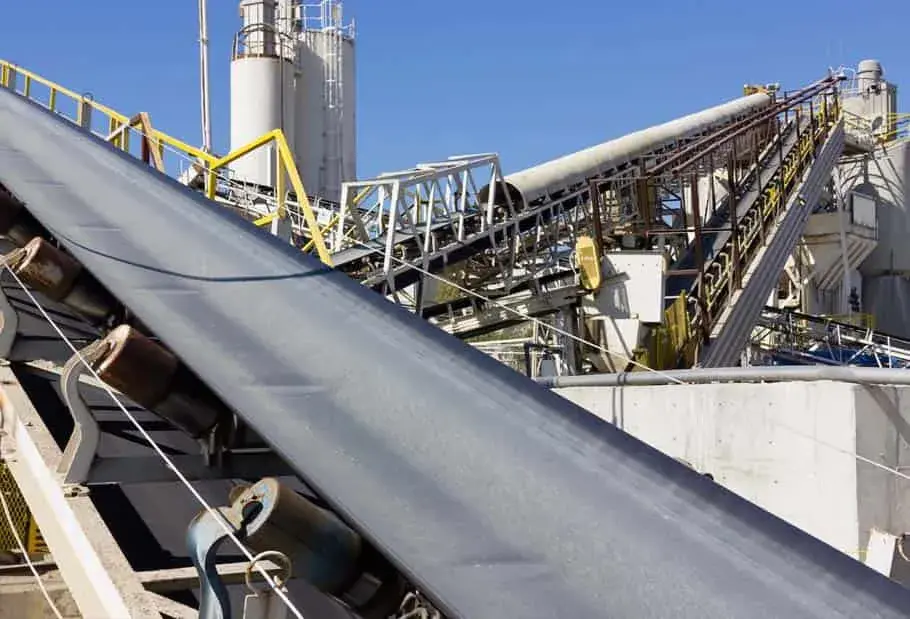

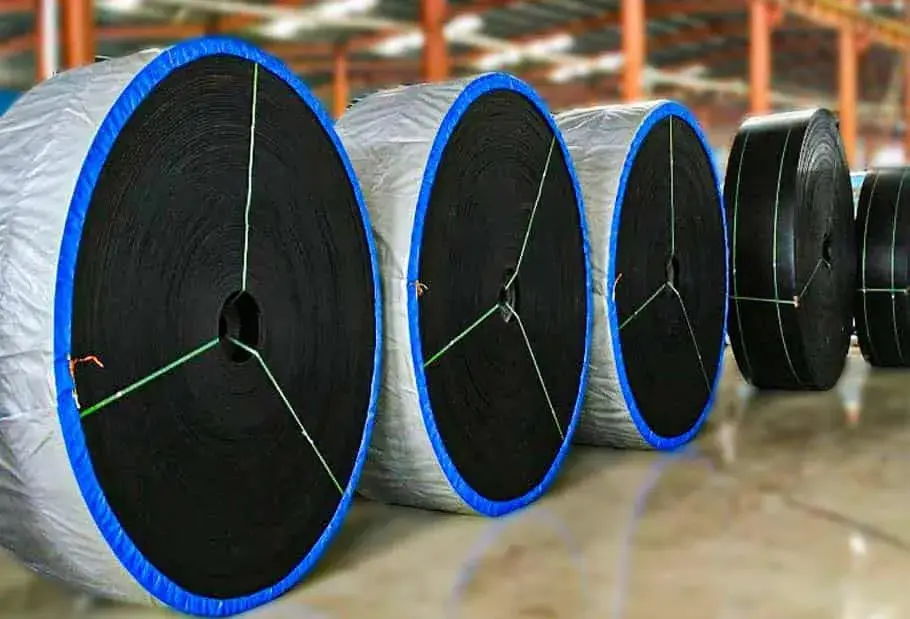

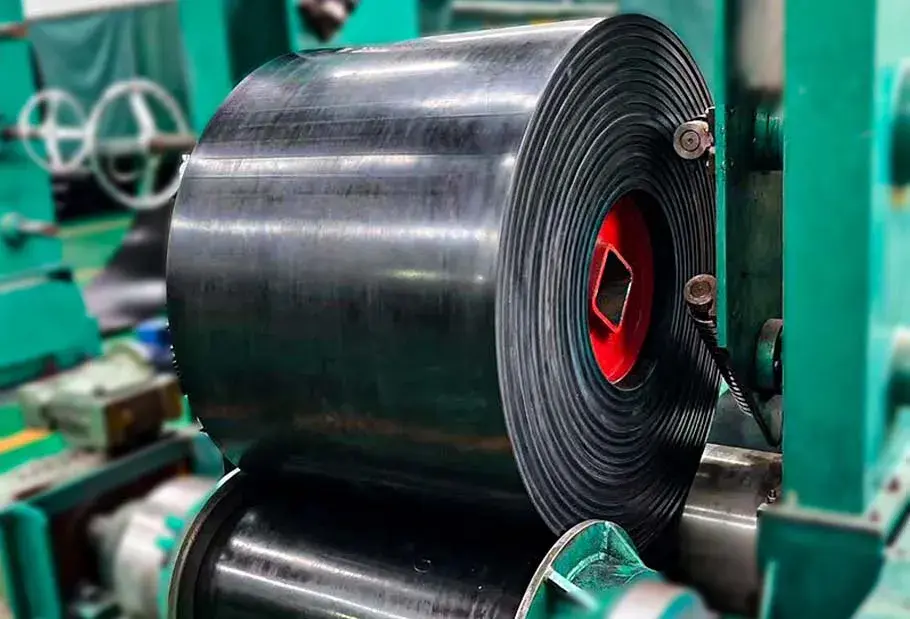

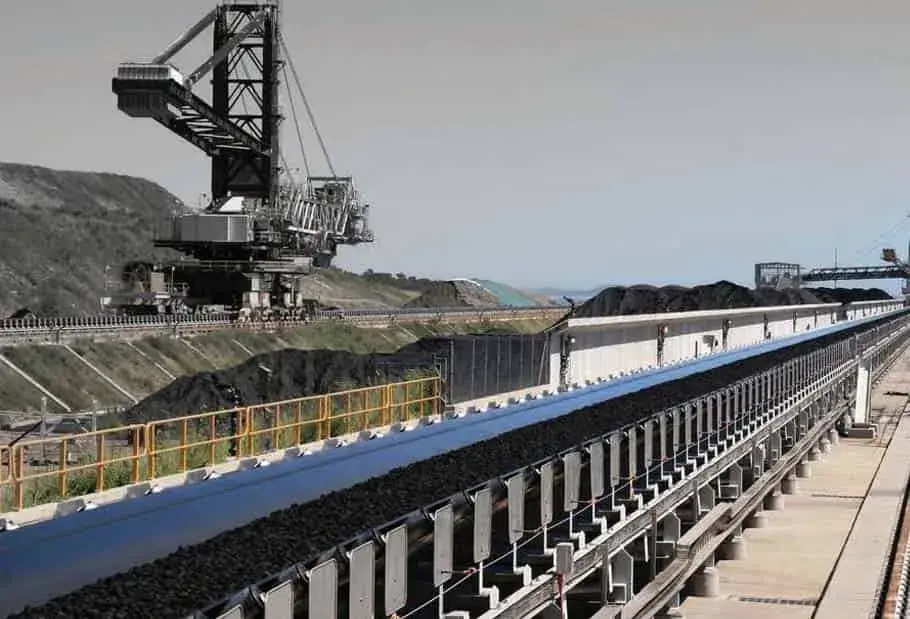

JINFLEX conveyor belts with high and stable quality are suitable for long-distance, heavy-load and high-speed materials transportation.
Carcass: EE / EP / NN / CC
Width range: 330mm - 2200mm
Standard: GB, DIN, RMA, AS, JIS, BS, SABS and ISO standards, etc.
Special ones also can be developed and designed according to your special requirements.
Product description

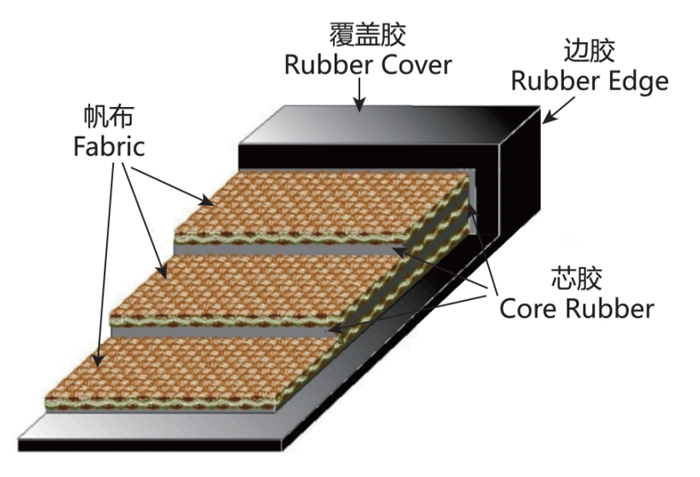

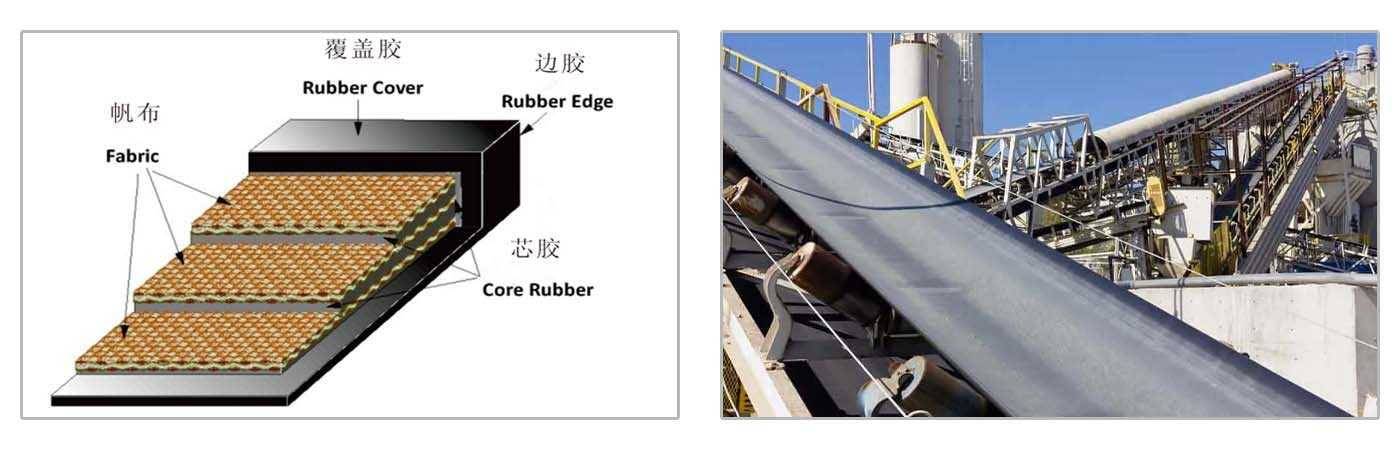

Construction:
Rubber Cover: top rubber cover + bottom rubber cover
Rubber cover is developed from blends of natural and synthetic rubber, which is designed to protect the carcass from abrasion, impact, water and other injurious influence. According to different applications, there are general and special types. The special types can meet special requirements of abrasion resistant, oil resistant, heat resistant, flame resistant, and acid & alkali resistant, etc.
Carcass: EP (polyester + polyamide ), NN (nylon + nylon), CC (cotton + cotton)
Carcass of the belt maintains belt tension and supplies structural strength, it undertakes almost all load in work.
Core Rubber: Has good fabric adhesion properties, which makes the fabrics bond tight. Can increase flex life and create a more elastic link, so that fabrics flex without separation when belt under working.
Advantage:
Excellent adhesion to rubber, High impact resistant, Low elongation, High modulus
Good flexibility & Good troughability
Reference Specification:
| Fabric Type | Ply Strength(N/mm) | Ply Thickness(mm) | Cover Thickness (mm) | No. of Ply | Width Range(mm) | |
| Top Rubber | Bottom Rubber | |||||
| EP/NN100 | 100 | 1.00 | 3 4.5 6 | 1.5 3 6 | 2~8 | 300-2200 |
| EP/NN 125 | 125 | 1.05 | ||||
| EP/NN 150 | 150 | 1.10 | ||||
| EP/NN 200 | 200 | 1.20 | ||||
| EP/NN 250 | 250 | 1.40 | ||||
| EP/NN 300 | 300 | 1.60 | ||||
| EP/NN 400 | 400 | 2.20 | ||||
| CC56 | 56 | 1.10 | ||||
| CC70 | 70 | 1.00 | ||||
