PVC/PVG Solid Woven Belts for Underground Mining

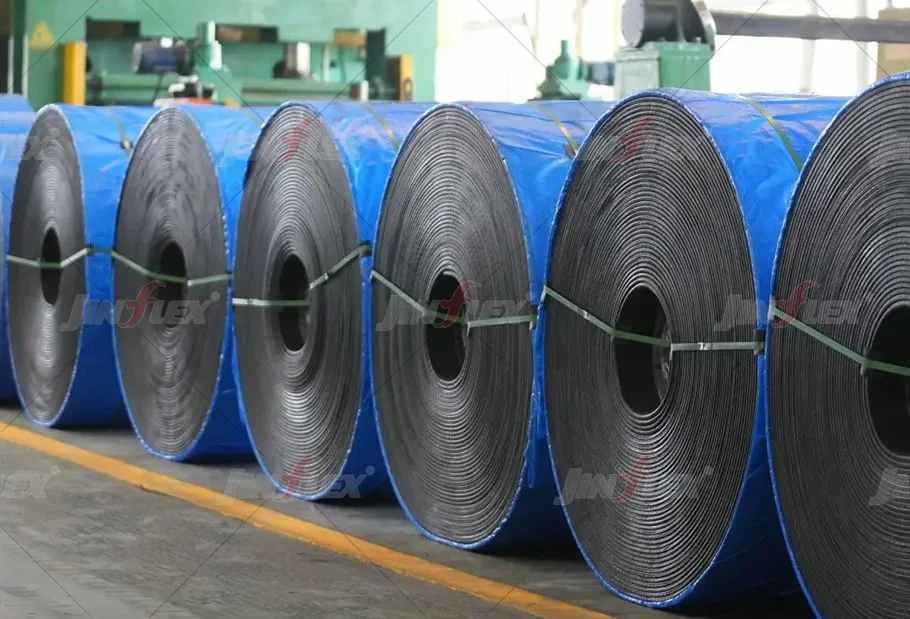

PVC/PVG Solid Woven Conveyor Belt

JINFLEX PVC/PVG solid woven conveyor belts are mainly designed for underground coal mining (wet/dusty environments) and also used in metallurgy and chemical industries—suitable for conveying coal, coking coal, mineral powder, and non-corrosive bulk materials.

Our PVC/PVG solid woven conveyor belts comply with multiple national and industrial standards, including China (MT914-2008, MT668-2019 for flame-resistant), Germany (DIN22131), the United States (RMA), Japan (JIS6369), Australia (AS1333), and international standards (ISO).

PVC/PVG Solid Woven Conveyor Belt

Product description

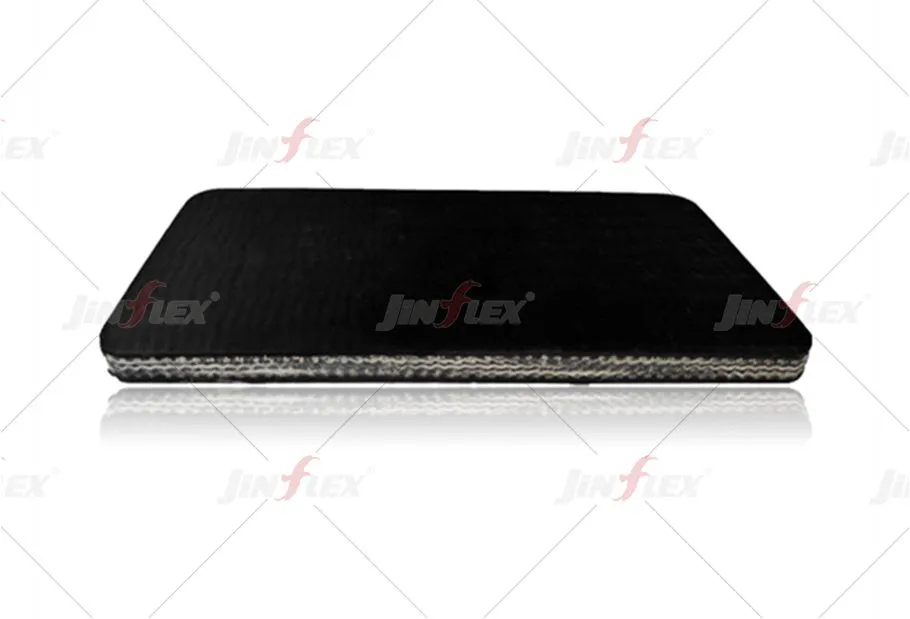

The PVC/PVG solid woven conveyor belt is made of a "solid woven core + PVC/PVG cover rubber" through impregnation, plasticization, and vulcanization:

Solid Woven Core:

High-strength polyester/cotton blended woven core, bearing tensile loads with low elongation (≤1.5% at 10% load).

PVC Cover Rubber (PVC Type):

Top + bottom PVC cover rubber (single side thickness ≥1.0mm), with flame-resistant and anti-static properties; suitable for ≤16° incline transport.

PVG Cover Rubber (PVG Type):

Top + bottom rubberized PVC cover rubber (more flexible), with better wear resistance; suitable for ≤20° incline transport.

Adhesion Layer:

Ensures tight bonding between core and cover rubber, avoiding layer separation under low-temperature/humid conditions.

Features and Benefits

■ Excellent Flame Resistance & Anti-Static

Meets MT668-2019 standard: Alcohol combustion time ≤10s (average ≤3s), propane combustion damage length ≤1250mm, surface resistance ≤3×10⁸Ω—prevents static explosion in underground mines.

■ High Tensile Strength & Stable Transport

Solid woven core has longitudinal tensile strength up to 1600N/mm, bearing heavy loads; low elongation ensures stable conveying speed, no material deviation.

■ Good Wear & Impact Resistance

PVG type cover rubber has Shore abrasion ≤150mm³; solid core resists impact from falling coal/ore, reducing belt damage.

■ Adaptability to Humid Environments

PVC/PVG cover rubber is water-resistant (water absorption ≤1.5%); suitable for underground wet mines and tunnel construction.

■ Easy Splicing & Maintenance

Cold vulcanized splice is available (simple operation); light belt weight (11-17kg/m²) reduces conveyor drive load, lowering energy consumption.

Belt Selection

Type: PVC (PVC cover rubber) / PVG (rubberized PVC cover rubber)

Belt Strength: From 680N/mm (680S) to 1600N/mm (1600S)

Transport Incline: PVC <16°, PVG <20°

Belt Width: 600mm - 2200mm

Safety Certification: Coal Safety (MA) Mark

Why Choose Us

Support small-batch orders with no MOQ：

backed by 20M meters annual capacity, we deliver small batches on time.

Offer full customization:

Support independent customization according to your needs (e.g., belt strength, width, cover rubber type).

Deliver high cost-effectiveness:

50+ years of experience, ISO/CE/MA certification, and optimized processes ensure reliable quality (flame-resistant, anti-static) at an economical price.

Reference Specification:

Type	Tensile strength ( ≥N/mm )		Elongation at break( ≥% )		Recommend min transmission drum diameter
Type	Longitude	Transverse	Longitude	Transverse	( mm )
680S	680	265	15	18	400
800S	80	280			500
1000S	1000	300			500
1250S	1250	350			500
1400S	1400	350			630
1600S	1600	400			750

Safety property

ltem	Alcohol combustion	Propane combustion	Conductivity property	Drum friction
Standard value	average value≤3S, single walue≤10S (with cover)	a)≥600mm	≤3X108Ω	≤325°C
Standard value	average value≤5S, single walue≤15S (without cover)	b)>50mm;≤140℃,damaged length≤1250mm	≤3X108Ω	No spark
