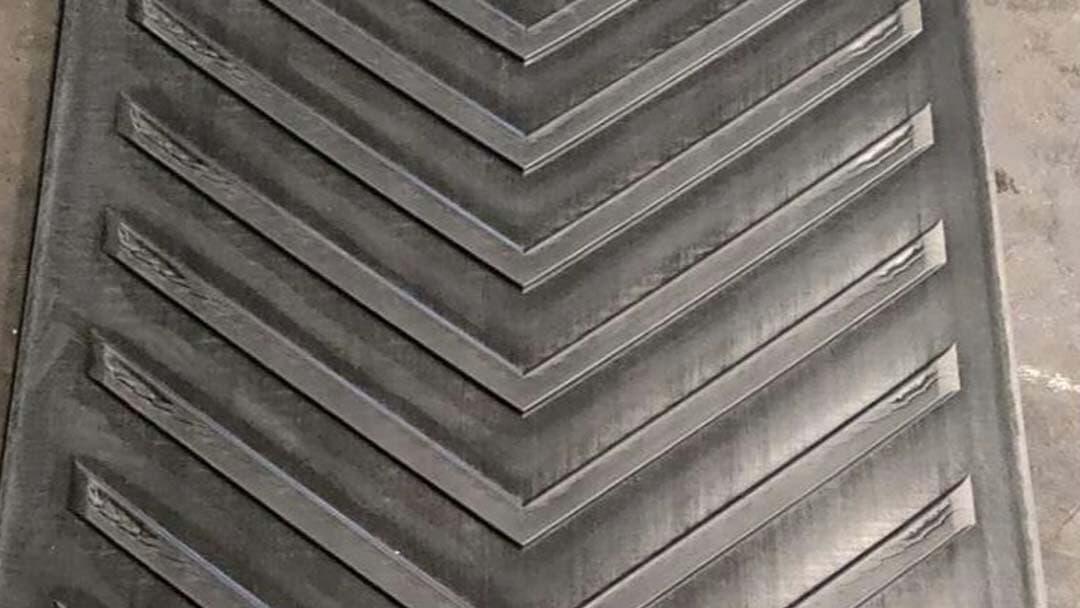

JINFLEX Chevron Conveyor Belts: Advanced Solution for Steep Incline conveying

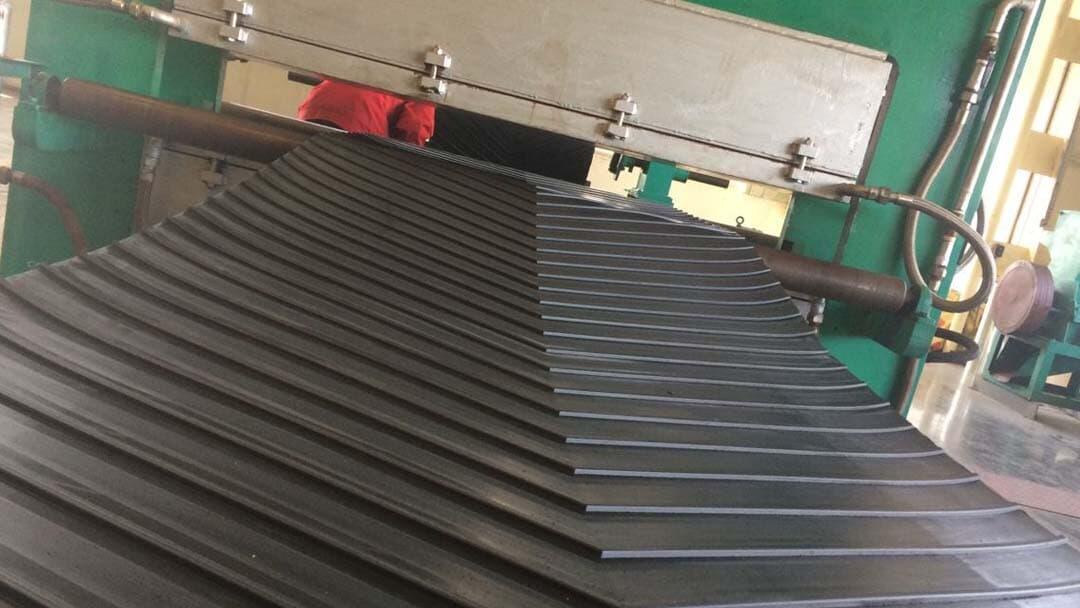

Chevron conveyor belts feature innovative patterned surfaces with integrally molded cleats that enable efficient material transport at angles up to 50°. These specialized belts maintain a 17-18° inclination capability for bulk materials and 30-50° for packaged goods, achieving over 95% material retention rates. The unique mono-block vulcanization process ensures pattern-to-base bond strength exceeding 8.0 N/mm, significantly reducing material rollback during operation.

The belts demonstrate exceptional performance characteristics with pattern heights ranging from 15-25mm and cover compound abrasion resistance of ≤120 mm³. Available in multiple profile configurations including V-type, L-type, and H-type, they accommodate various material types from fine grains to coarse aggregates. Field data shows 40% improved efficiency in steep incline applications compared to conventional flat belts, with typical service life exceeding 24 months in mining and construction environments.

Manufactured to ISO 15236-1 standards, these belts support load capacities up to 1000 tons/hour and operate in temperature ranges from -20°C to 80°C. The anti-slip design features specifically engineered cleat spacing that ensures smooth transition over return idlers while maintaining continuous material flow. Custom pattern configurations are available for specific material characteristics and operational requirements.
