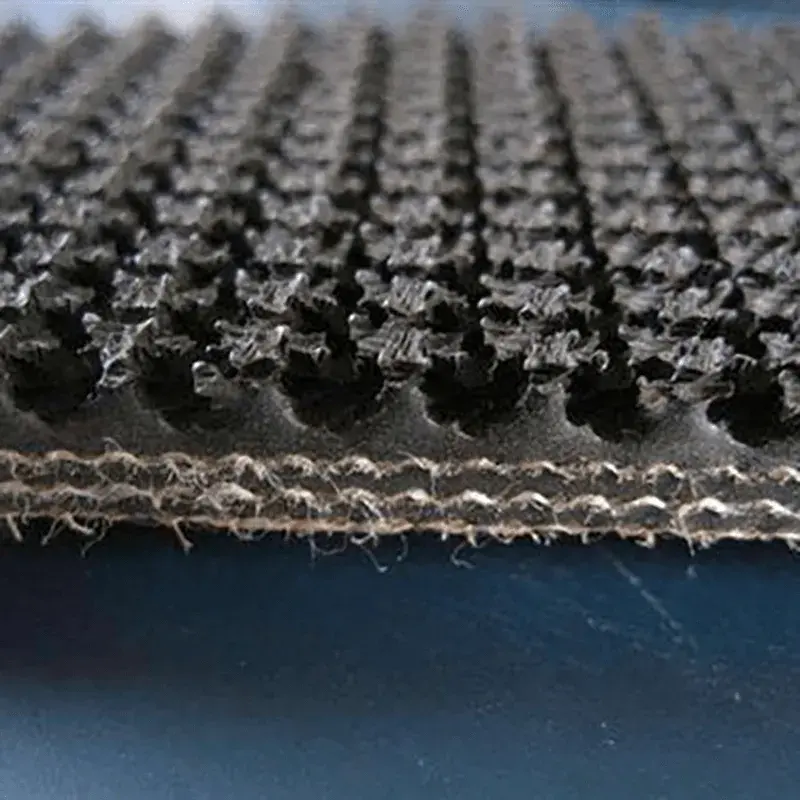

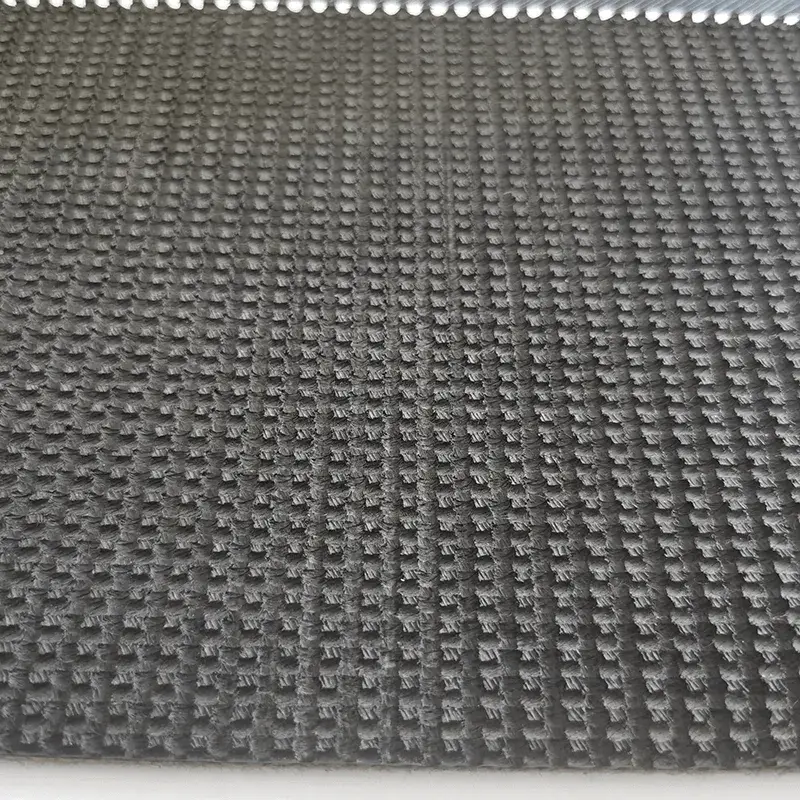

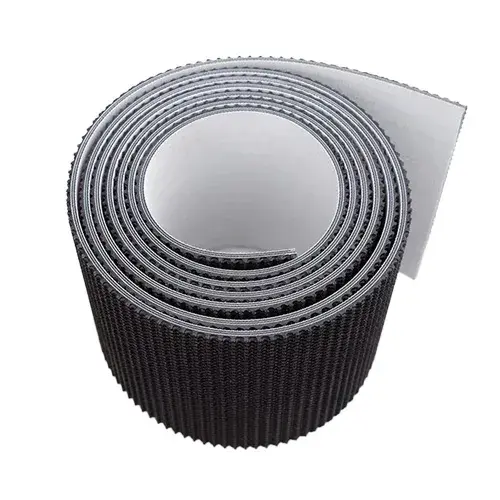

Rough top conveyor belt is designed with a textured anti-slip top cover to provide excellent grip for light-duty and inclined conveying. The belt is commonly built with EP or NN fabric carcass and abrasion-resistant rubber cover. Its rough top surface helps prevent boxes, parcels, bags, glass products and deformable materials from slipping or rolling back during transportation.
It is widely used for belt loaders, lorry loaders, warehouse logistics, packaging lines and light industrial conveying systems where stable material handling and improved friction are required.
Our rough top conveyor belts can be manufactured according to GB, DIN, ISO, RMA, AS, JIS, BS and SABS standards, or customized according to customer technical requirements.
Product description
Features and Benefits
■ Excellent Anti-Slip Performance
The rough top surface provides higher friction and stable grip, helping prevent boxes, sacks, parcels and light goods from slipping or rolling back during inclined conveying.

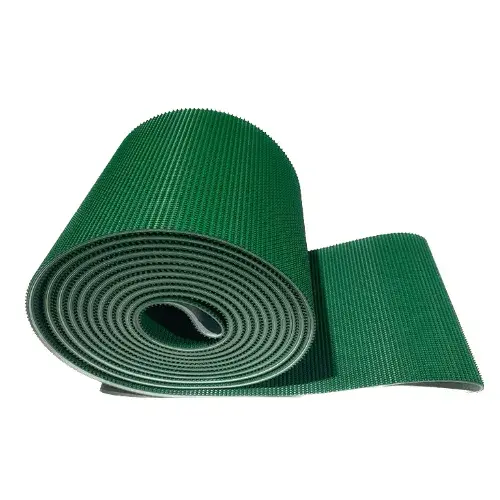

■ Suitable for Inclined Conveying
Designed for horizontal and inclined conveyor systems, commonly used at conveying angles up to approx. 30-35 degrees depending on material weight, contact area and working conditions.
■ Cushioning Surface for Light Goods
The textured rubber surface offers a cushioning effect, making it suitable for fragile, deformable or packaged products such as cartons, bags, glass goods and parcels.

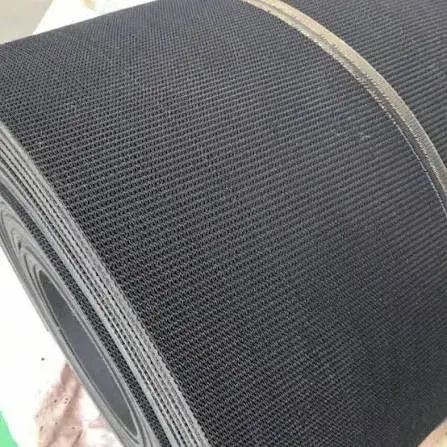

■ Durable Fabric Carcass
Available with EP or NN fabric carcass, providing good flexibility, tensile strength and stable running performance for light-duty and medium-duty conveying applications.
■ Abrasion-Resistant Rubber Cover
The top cover is made with wear-resistant rubber compound, suitable for continuous conveying and helping extend belt service life under normal operating conditions.
■ Multiple Types Available for Customization
Rough top conveyor belts can be customized by belt width, belt strength, number of plies, cover thickness, bottom surface, edge type and joint method. Options include open belt, endless belt, cut edge, molded edge, flat bottom, bare back and special processing according to customer requirements.
Why Choose Jinflex
No MOQ & Support for Small Batches
Benefit from our 20-million-meter annual production capacity. We efficiently handle small orders with on-time delivery, perfect for pilot runs or specialized projects.
Full Customization Capabilities
We support fully independent customization—from compound formulas to belt specifications—to develop the ideal solution for your unique conveying needs.
Proven Cost-Effectiveness & Reliable Quality
Backed by 50+ years of expertise, ISO/CE/MA certifications, and optimized processes, we deliver reliable performance (low elongation, high adhesion) at an economical price point.
Reference Specification:
| Belt Type | Tensile Strength N/mm | Fabric Type | Cover Thickness mm | No. of Ply | Width Range mm |
|---|---|---|---|---|---|
| EP/NN100 | 100 | EP / NN | Top: 3.0-4.5 / Bottom: 1.5-3.0 | 2-3 | 300-2200 |
| EP/NN125 | 125 | EP / NN | Top: 3.0-4.5 / Bottom: 1.5-3.0 | 2-3 | 300-2200 |
| EP/NN150 | 150 | EP / NN | Top: 3.0-6.0 / Bottom: 1.5-3.0 | 2-4 | 300-2200 |
| EP/NN200 | 200 | EP / NN | Top: 3.0-6.0 / Bottom: 1.5-3.0 | 2-4 | 300-2200 |
| EP/NN250 | 250 | EP / NN | Top: 4.5-6.0 / Bottom: 1.5-4.5 | 3-5 | 400-2200 |
| EP/NN300 | 300 | EP / NN | Top: 4.5-6.0 / Bottom: 1.5-4.5 | 3-6 | 400-2200 |
| EP/NN400 | 400 | EP / NN | Top: 4.5-8.0 / Bottom: 1.5-4.5 | 4-6 | 500-2200 |
| Item | Specification |
|---|---|
| Carcass Material | EP, NN fabric |
| Belt Strength | 100-400 N/mm, customized |
| No. of Ply | 2-6 ply |
| Top Cover | Rough top anti-slip rubber |
| Bottom Cover | Flat rubber or bare back, optional |
| Cover Thickness | Top 3.0-8.0 mm, bottom 1.5-4.5 mm |
| Belt Width | 300-2200 mm |
| Belt Edge | Cut edge or molded edge |
| Surface Pattern | Rough top / textured anti-slip surface |
| Working Angle | Up to approx. 30-35 degrees depending on material and conditions |
| Application | Light goods, sacks, boxes, parcels, fragile or deformable products |
