Zaozhuang Jinflex Rubber & Plastic Technology Co., Ltd. is a major Chinese rubber manufacturer. Based in Zaozhuang, Shandong (180,000 sqm facility), we have USD 18 million capital and 500+ employees (20%+ professionals).

All meet GB, DIN, RMA, AS, JIS, SABS, etc. Custom designs available.

ISO,CE & Coal Safety certified ("JINFLEX" & "WEISHANHU" trademarks). We feature national labs, provincial R&D, and professional QC for industry-leading design and production.

With nearly 50 years' experience, our quality products and service are recognized globally, exporting to 20+ countries including Germany, Canada, Australia, Russia, Brazil, South Africa, Chile, and the Middle East.

What are the Types of Rubber conveyor belt of Jinflex?

We manufacture a comprehensive range of conveyor belts, including:

Multi-ply Fabric Conveyor Belt, Steel Cord Conveyor Belt, Corrugated Sidewall Conveyor Belt, Chevron Conveyor Belt, PVG/PVC Solid Woven Conveyor Belt, Special Conveyor Belt, Flame Resistant Conveyor Belt, Heat Resistant Conveyor Belt, Cold Resistant Conveyor Belt, Oil Resistant Conveyor Belt, Acid & Alkali Resistant Conveyor Belt, Endless conveyor belt, Bucket Elevator Conveyor Belt, Rubber hose

All belts meet GB, DIN, RMA, AS, JIS, SABS, and other international standards. We also develop custom designs to meet specific requirements.

rubber Conveyor Belt

What Are the Benefits of Different rubber Conveyor Belt ?

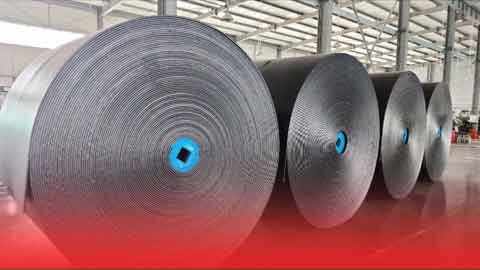

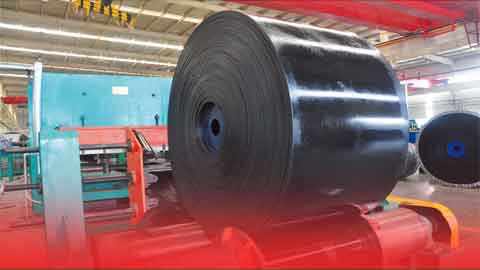

1. Multi-ply Fabric Conveyor Belt

JINFLEX conveyor belts with high and stable quality are suitable for long-distance, heavy-load and high-speed materials transportation.

Carcass: EE / EP / NN / CC

Width range: 330mm - 2200mm

Standard: GB, DIN, RMA, AS, JIS, BS, SABS and ISO standards, etc.

Special ones also can be developed and designed according to your special requirements.

Advantage:

Excellent adhesion to rubber, High impact resistant, Low elongation, High modulus

Good flexibility & Good troughability

Model: EP/NN 100, EP/NN 125, EP/NN 150, EP/NN 200, EP/NN 250, EP/NN 300, EP/NN400, CC56, CC70

Rubber Conveyor Belts | Heavy-Duty, Abrasion

2. Steel Cord Conveyor Belt

They are widely used in coal mining, port, power plant, metallurgy, construction industry, etc. And suitable for long-distance, heavy-load and high-speed materials transportation.

Width range: 4000mm - 2400mm

Standard: GB, DIN, RMA, AS, JIS, BS, SABS and ISO standards, etc.

Special ones also can be developed and designed according to your special requirements

Advantage:

High adhesion between rubber and steel cords: using zinc galvanized open steel cord + specific core rubber

High tensile strength

Impact resistant

Longer using life

Good flexibility & Good troughability

Suitable for the location with high intensity, long distance and low stretch requirement.

Specification：ST1000, ST1250, ST1600, ST2000, ST2500, ST3150, ST3500, ST4000, ST4500, ST5000, ST5400

Rubber Conveyor Belts | Heavy-Duty, Abrasion

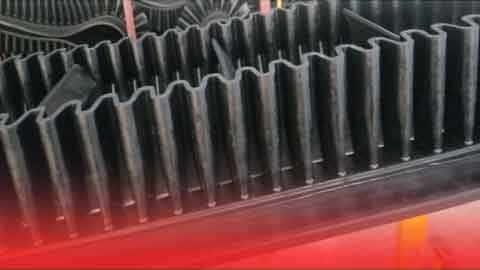

3. Corrugated Sidewall Conveyor Belt

Corrugated Sidewall Conveyor Belt is suitable for steep angle conveying of general and bulk goods. This system can conveyor materials vertically and can also work at a large slope from 0-90 degrees. Our special designed base belt with transverse reinforcement can solve the problem of belt collapse.

Model: N, S, ES

Rubber Conveyor Belts | Heavy-Duty, Abrasion

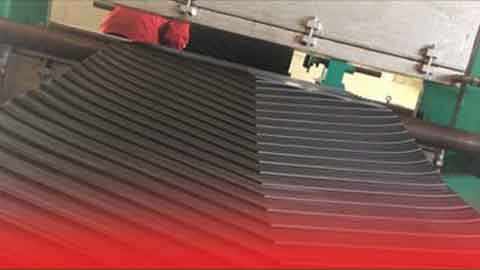

4. Chevron Conveyor Belt

Chevron Conveyor Belt is the good choice to conveyor wet or loose materials or bags up steep inclines. For this purpose, we have developed high performance and high quality chevron conveyor belts. Their advantages are long service life and flexibility due to chevron profiles vulcanized on the base belts by one time.

Advantage:

Can carry bulk material at angles of 17-18 degrees and bagged material at angles of 30- 50 degrees

Cleat angle and pitch are designed for smooth travel over return idlers

Cleats and top rubber cover are mono block molding for strength

Application:

Mobile crushers and screens

Farming: conveying of beets, grains, potatoes, fertilizers, wooden chips

Sugar refineries and salt mines

Quarries, sandpits

Cement works, lime works

Coal and coke transport

Rubber Conveyor Belts | Heavy-Duty, Abrasion

5. PVC/PVG Solid Woven Conveyor Belt

Solid woven conveyor belt is manufactured by plasticizing or vulcanizing solid woven core, which is impregnated in PVC paste.

Advantage:

High tensile strength, big volume, smooth transportation.

Good fire / static / impact / abrasion / corrosion resistant.

Model: 680S, 800S, 1000S, 1250S, 1400S, 1600S

Rubber Conveyor Belts | Heavy-Duty, Abrasion

6. Special Conveyor Belt

6-1 Flame Resistant Conveyor Belt

Flame Resistant Conveyor Belt is primarily required for internal transportation in tunnels and mines where safety is of paramount importance.

Our products meet the standard of MT668-2019 and we have obtained the relevant certificates.

Advantage:

Flame resistant, abrasion resistant, longer using life and high tensile strength

To guard against risks of explosion due to the accumulation of static electricity

Rubber Conveyor Belts | Heavy-Duty, Abrasion

6-2 Heat Resistant Conveyor Belt

Excellent heat resistant and abrasion resistant rubber cover compound to protect conveyor belt surface cracking and hardening that caused by heat.

Specially heat-treated and dipped fabric to minimize carcass shrinkage by heat aging

Model: HR120, HR150, HR180, HR200, HOR

Rubber Conveyor Belts | Heavy-Duty, Abrasion

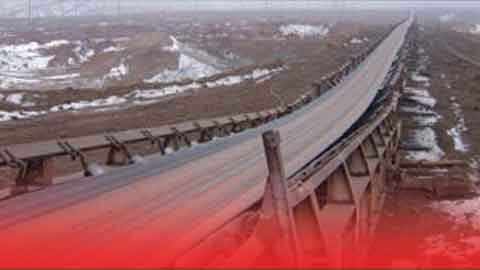

6-3. Cold Resistant Conveyor Belt

The product selects cotton canvas, nylon canvas or EP canvas as carcass. Rubber cover selects a blend of NR and BR, which has the properties of high elasticity, impact resistant, cold resistant and so on. It can be used at the temperature above -45 ℃.

Suitable for conveying materials outdoors in freezing area, cold storage and so on.

Rubber Conveyor Belts | Heavy-Duty, Abrasion

6-4. Oil Resistant Conveyor Belt

The oil resistant synthetic rubber enable the belt to convey oil contaminated or treated materials since this kind of rubber has good resistant to the damage caused by oil.

It is suitable for concrete plants, timber industry, metral processing industry, waste sorting and paper industry, etc.

Rubber Conveyor Belts | Heavy-Duty, Abrasion

6-5. Acid & Alkali Resistant Conveyor Belt

Acid & Alkali Resistant Conveyor Belt is designed to convey corrosive or acid & alkali material since it can reduce the corrosion of rubber cover so as to extend the belt life.

Widely used in chemical plant, paper mill, fertilizer plant, mining, port and other environment with acid and alkali material.

Rubber Conveyor Belts | Heavy-Duty, Abrasion

06-06 Bucket Elevator Conveyor Belt

06-07 Rubber hose

Why you Purchase Rubber Conveyor belt from Jinflex?

As a professional conveyor belt manufacturer with over 50 years of experience and global certification (ISO/CE/MA), Jinflex focuses on solving your practical procurement pain points—here are 4 core reasons to choose us for your rubber conveyor belt needs:

1. Fully Customized to Your Exact Needs

We don’t just offer standard belts—we tailor every detail to match your working scenarios. Whether you need to adjust belt width (400-2200mm), carcass material (EP/NN/CC/steel cord), cover rubber performance (wear/heat/flame/acid-alkali resistance), or comply with international standards (GB/DIN/RMA/JIS/BS/SABS/AS), our 120+ professional engineers will develop solutions that fit your material, load, and environment perfectly. No more compromising on "close-enough" standard products.

2. Support Small-Batch Orders with No MOQ

We understand your needs for trial runs, emergency replenishment, or small-volume projects. Backed by an annual production capacity of 20 million meters and a flexible production system, we accept small-batch orders—whether it’s a few hundred meters for testing or small quantities for equipment matching—with no minimum order quantity (MOQ) threshold. You only pay for what you need, avoiding unnecessary inventory costs.

3. Unbeatable Cost-Effectiveness with Reliable Quality

High quality doesn’t have to come with a high price tag. Jinflex optimizes production processes (from raw material sourcing to molding) to cut redundant costs, while strict quality control (national-level laboratory testing, 100% pre-delivery inspection) ensures belts have low elongation, high adhesion, and long service life. You get industrial-grade durability (comparable to premium brands) at a more economical price, balancing performance and budget.

4. Fast Delivery to Meet Your Timeline

We know delays can disrupt your operations. For standard belts (e.g., common EP/NN types), we ensure delivery within 5-7 working days; for customized belts, we streamline the design and production process to complete orders in 10-15 working days—far faster than the industry average of 2-4 weeks. Our efficient supply chain and production team keep your projects on track.

Choose Jinflex, and you’re not just buying a conveyor belt—you’re getting a tailored, cost-saving, and timely solution that grows with your business.
